Uncooled LWIR USB Mini 640*512 Thermal Imaging Camera Core Module For Drones Similar To DJI
Model: TCM640512
Stock: 1000
1.Product Introduction1.1. Product description
Product Parameter of Mini 640 Uncooled LWIR Thermal Camera Module:
Resolution: 640*512
Detector Frame: Radiometric Version(25Hz),Non-Radiometric Version(60Hz)
Pixel Spacing: 12um
Response Wave Band: 8~14um
NETD: <50mK@25°C,F#1.0 (<40mK optional)
Lens Type: 4/7/9/13/15/18/25/35/50/60/75mm
Thermal Palettes: White heat; Black heat;

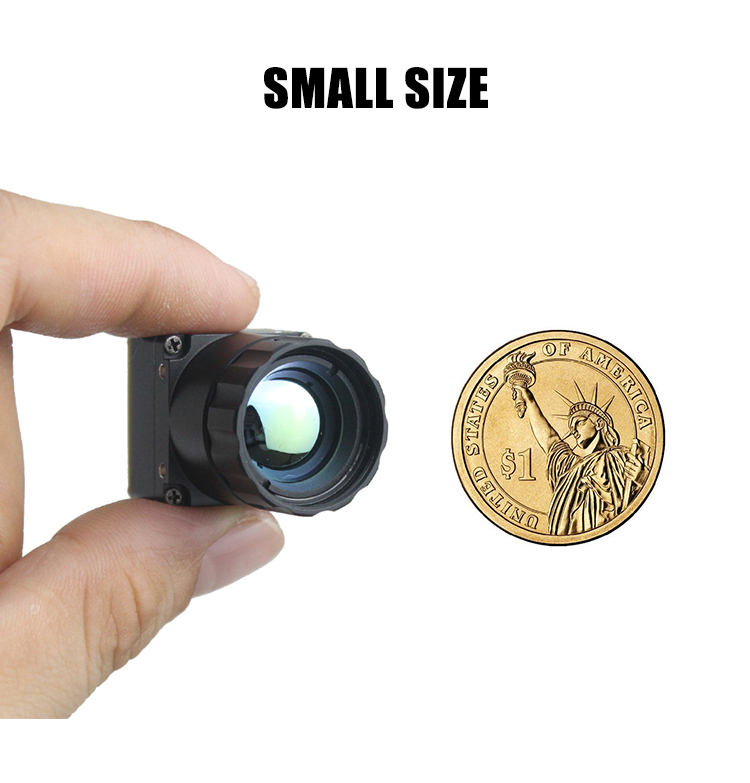

Weight: <20 g(without lens)

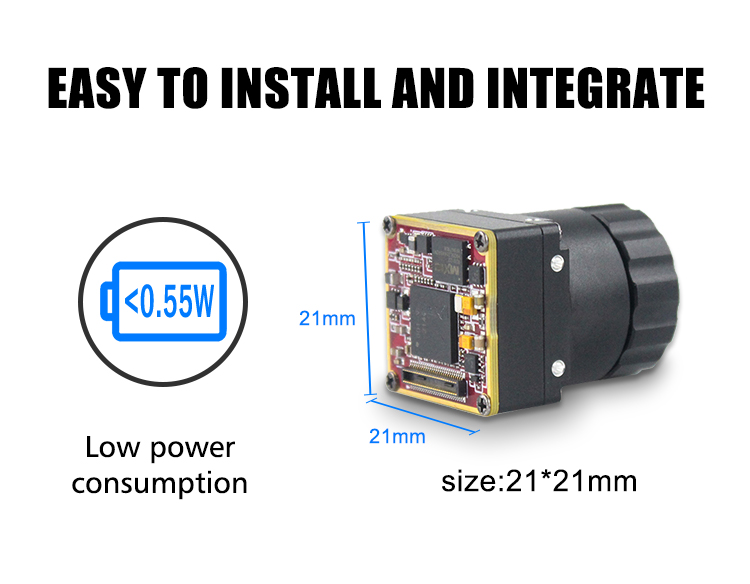

Size: 21mm*21mm(without lens)
1.2. Characteristic

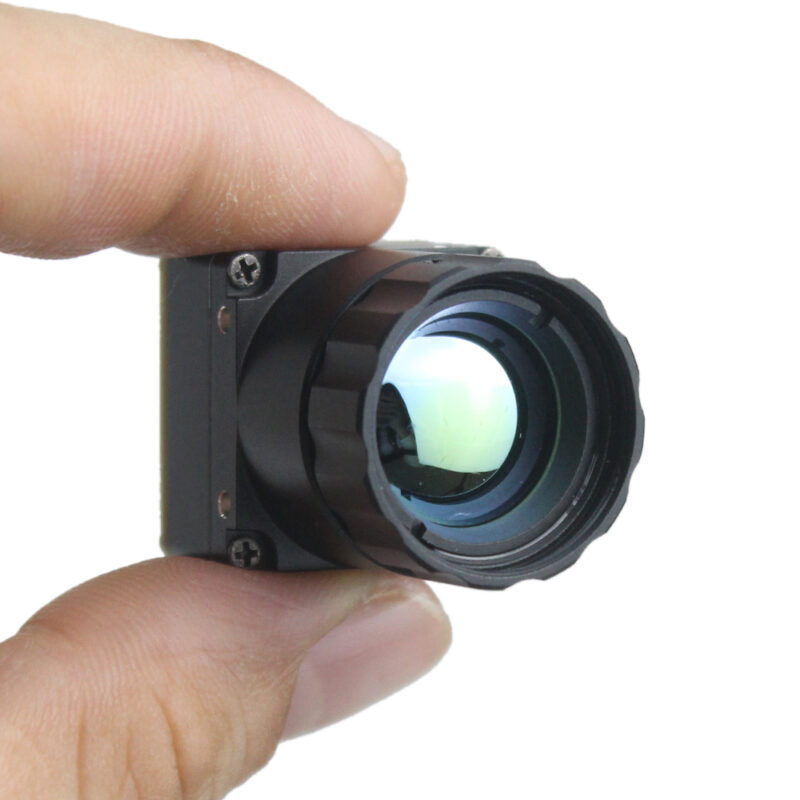

Compact & Lightweight Design

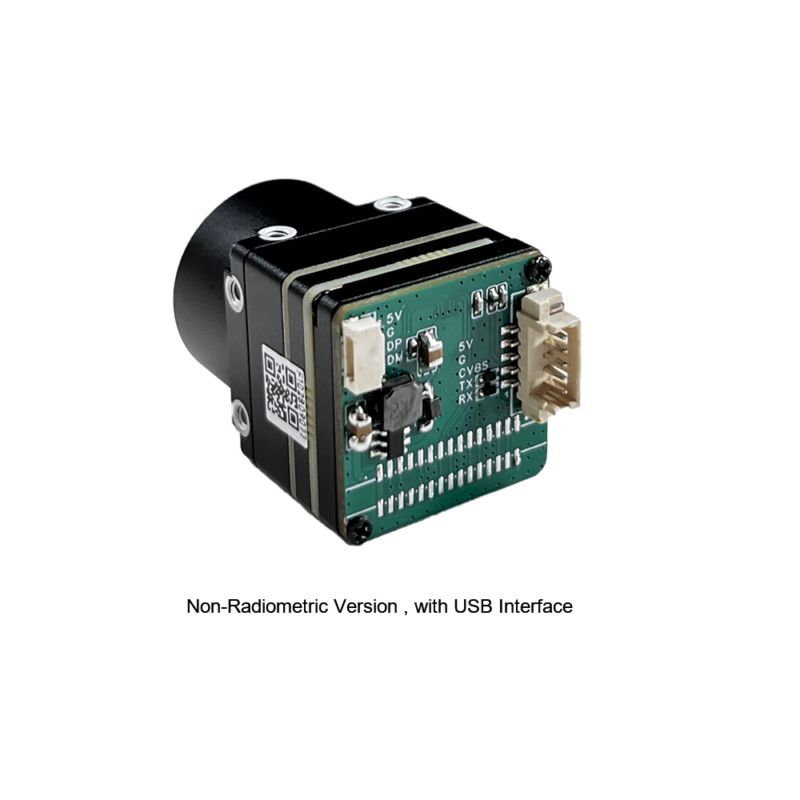

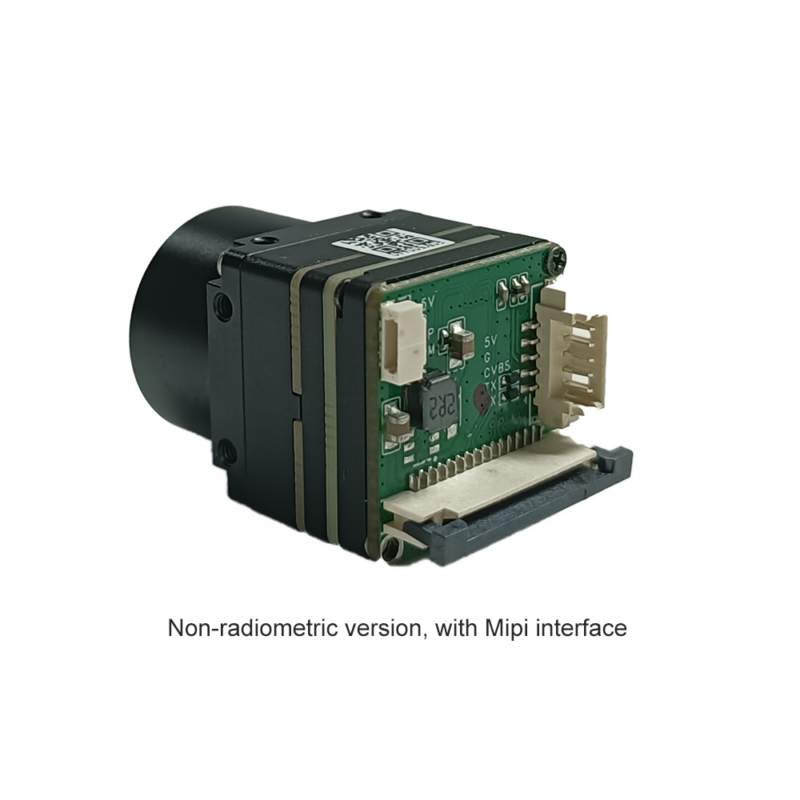

• Digital Video: USB、MIPI、BT.656

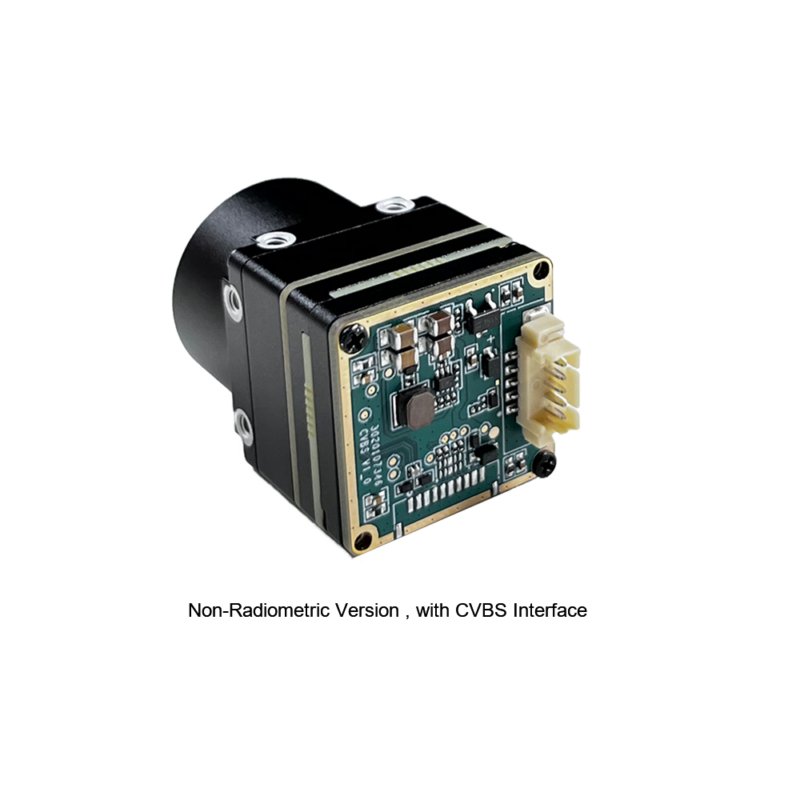

• Analog Video: CVBS、PAL、NTSC
• Serial Communication: UART、RS232、RS422
• Temp Measure Range: From -20℃ to +550℃
Clear Image & Accurate Radiometry
• lmage Processing: TECLESS algorithm/Nonuniformity correction/Digital filtering noise reduction/Digital detail enhancement
Various Interfaces for Easy Integration
1.3. Thermal Imaging Module Applications
Security inspection: industrial monitoring, perimeter scanning, inspection robots, optoelectronic pods
Fire rescue: fire warning, fire helmet
Other specific applications: Drones , power detection and thermal imaging guided missile

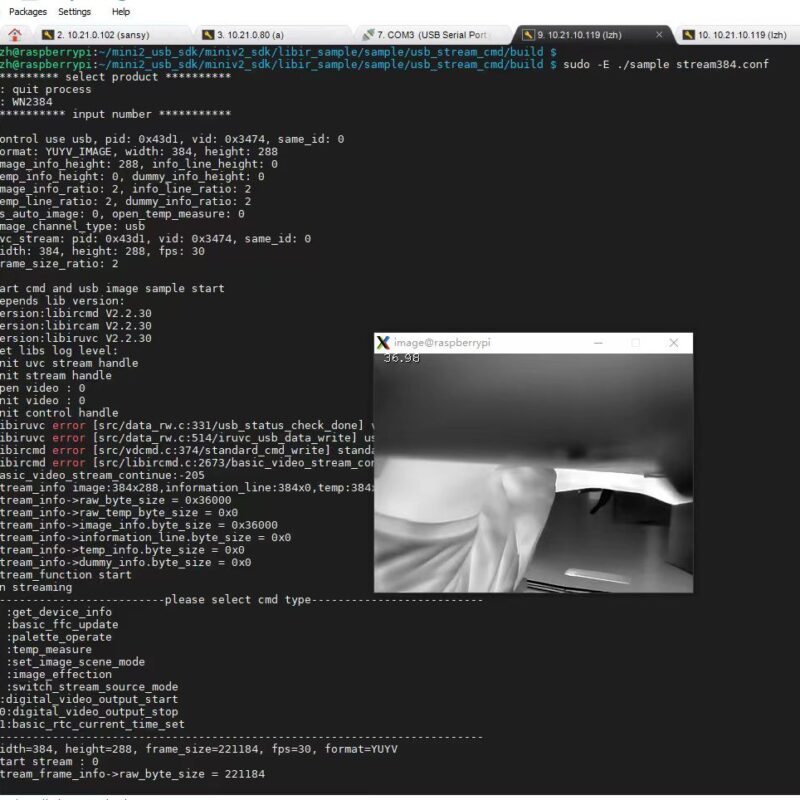

Thermal Camera Module for Raspberry Pi/Orange Pi
Thermal Mines Detection
2.1. Product Paramenters
| Model | Mini640-4 | Mini640-7 | Mini640-9 | Mini640-13 | Mini640-15 | Mini640-18 | Mini640-25 | Mini640-35 | Mini640-50 | Mini640-60 | Mini640-75 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Resolution | 640*512 | ||||||||||
| Detector Type | Vox | ||||||||||
| Detector Frame | 25Hz(Radiometric )/60Hz(Non-Radiometric ) | ||||||||||
| Pixel Spacing | 12μm | ||||||||||
| Response Wave Band | 8～14μm | ||||||||||
| NETD | ≤50mK@25℃,F#1.0（≤40mK optional） | ||||||||||
| Lens: | |||||||||||
| Focus | 4mm | 7mm | 9mm | 13mm | 15mm | 18mm | 25mm | 35mm | 50mm | 60mm | 75mm |
| FOV | 100°*82° | 80°*62° | 48.7°*38.6° | 31.9°*25.7° | 29.3°*23.5° | 24.2°*19.5° | 17.5°*14° | 12.5°*10° | 8.8°*7° | 7.3°*5.9° | 5.9°*4.7° |
| F-number | 1 | ||||||||||
| Image Adjustment: | |||||||||||
| Polarity | White heat/Black heat | ||||||||||
| Module Power Supply: | |||||||||||
| Supply Voltage | 1.8V、3.3V、5V | ||||||||||
| Typical Dissipation @25℃ | ＜0.5W | ||||||||||
| Video output: | |||||||||||
| Digital Video | USB、MIPI | ||||||||||
| Analog Video | CVBS or PAL or NTSC | ||||||||||
| Serial Communication | UART、RS232、RS422 | ||||||||||
| Module Physical Properties:(Without Lenses and Flanges) | |||||||||||
| Weight | ＜20g(without lens) | ||||||||||
| Size | 21x21mm(without lens) | ||||||||||
| Temperature Measurement: | |||||||||||
| Temp Measure Rang | From -20℃ to +550℃ | ||||||||||
| Environmental Adaptability: | |||||||||||
| Work Temperature | From -40℃ to +80℃ | ||||||||||
| Storage Temperature | From -50℃ to +85℃ | ||||||||||
| Humidity | 5%-95%, no condensation | ||||||||||
